Description

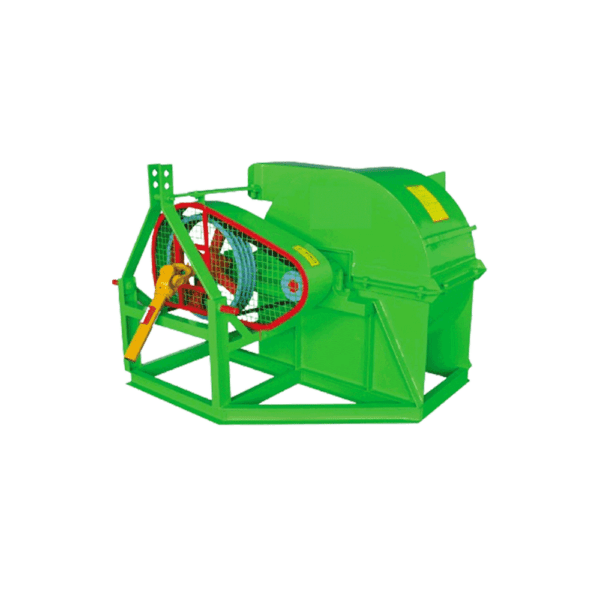

Name of the Machine | Tractor PTO operated Shredder Cum Pulverizer |
Type | Tractor PTO operated (540rpm) |
Product Details | Make | Sri Andal |
Model | Model – II |
Country of Origen | India |
Dimensions | Length (mm) | 1450 |
Width (mm) | 1760 |
Hight (mm) | 1050 |
Weight (Kg) | 540 |
Power Source | Tractor PTO operated |
Required Power | 40hp Tractors and above |
Fuel Consumption (L/hr) | 6L 300ml |
Flat Knife Dimensions | Length (mm) | 350 |
Width (mm) | 100 |
Thickness (mm) | 12 |
Blade weight (Kg) | 3 |
Main Drive | Type | Belt drive |
Size of belt | C82 |
No. of belt | 3 |
Drive shaft diameter (mm) | 50 |
Drive pulley diameter (mm) | 510 |
Driven shaft diameter (mm) | 60 |
Driven pulley diameter (mm) | 130 |
Contraction details of Rotor assembly | Type | Rotor type |
No. of Rotor | one |
No. of Disk | 3 |
Cutting Blade Disc | Diameter (mm) | 810 |
Thickness (mm) | 20 |
No. of Blades in Disc | 6 |
Blade Dimensions | Length (mm) | 360 |
Width (mm) | 100 |
Thickness (mm) | 12 |
Blade weight (Kg) | 2.7 |
Pulverizing knife supporting disc | Diameter (mm) | 565 |
Thickness (mm) | 12 |
Number of Knife in disc | 42 |
Knife Dimensions | Length (mm) | 176 |
Width (mm) | 40 |
Thickness (mm) | 12 |
Blade weight (Kg) | 0.5 |
Other supporting disc | Diameter (mm) | 620 |
Thickness (mm) | 12 |
Rotor shaft | Diameter (mm) | 60 |
| Length (mm) | 920 |
Feeding chute size (Length x Width) (mm) | 300 x 330 |
Outlet size (Length x Width) (mm) | 260 x 180 |
Suitable Bio – Wastes | Dry and wet coconut frond, Coconut husk |
Branchers of trees, Harvested banana trees |
