| Name of the Machine |

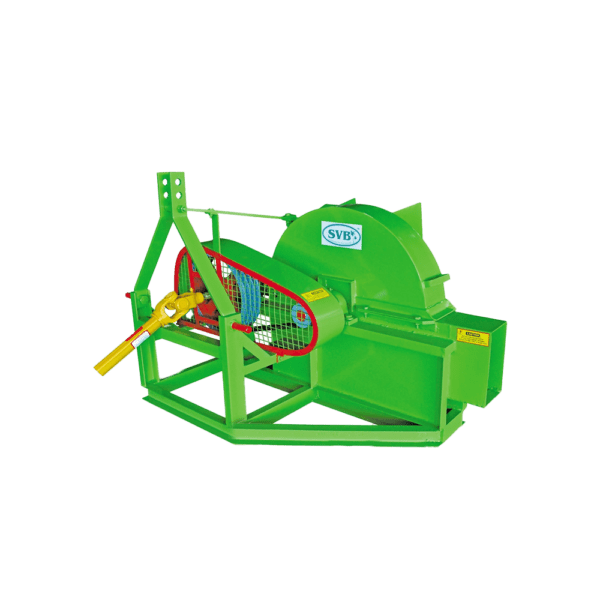

Tractor PTO operated Shredder |
| Type |
Tractor PTO operated (540rpm) |
| Product Details |
Make |
Sri Andal |
| Model |
Model – I |
| Country of Origen |
India |
| Dimensions |
Length (mm) |
1430 |
| Width (mm) |
1280 |
| Hight (mm) |
1050 |
| Weight (Kg) |
310 |
| Power Source |
Tractor PTO operated |
| Required Power |
35hp Tractors and above |
| Fuel Consumption (L/hr) |
3L 300ml |
| Flat Knife Dimensions |
Length (mm) |
300 |
| Width (mm) |
100 |
| Thickness (mm) |
12 |
| Blade weight (Kg) |
2.4 |
| Main Drive |
Type |
Belt drive |
| Size of belt |
C74 |
| No. of belt |
3 |
| Drive shaft diameter (mm) |
60 |
| Drive pulley diameter (mm) |
460 |
| Driven shaft diameter (mm) |
50 |
| Driven pulley diameter (mm) |
12 |
| Contraction details of Rotor assembly |
Type |
Rotor type |
| No. of Rotor |
one |
| Diameter (mm) |
740 |
| Thickness (mm) |
16 |
| No. of Blades in Rotor |
6 |
| Blade Dimensions |
Length (mm) |
300 |
| Width (mm) |
100 |
| Thickness (mm) |
12 |
| Blade weight (Kg) |
2.4 |
| Rotor shaft |
Diameter (mm) |
50 |
|
Length (mm) |
550 |
| Feeding chute size (Length x Width) (mm) |
300 x 320 |
| Outlet size (Length x Width) (mm) |
160 x 260 |
| Suitable Bio – Wastes |
Dry and wet coconut frond, Coconut husk |
| Branches of trees, Harvested banana trees |
