Description

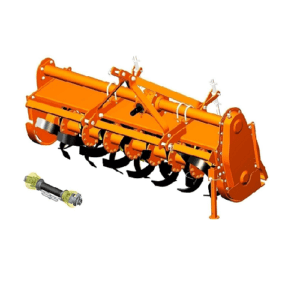

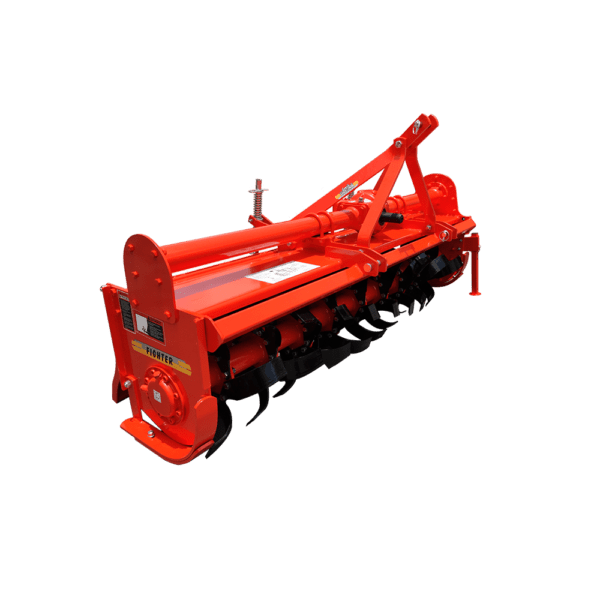

SHAKTIMAN ROTAVATOR FOR KUBOTA L4508 TRACTOR
| FIGHTER SERIES ROTARY TILLER | SPECIFICATION |
| Overall Length (mm) | 1943 |
| Overall Width (mm) | 630 |
| Overall Height (mm) | 994 |
| Tilling Width (mm / inch) | 1805/71 |
| Tractor Power (HP) | 35-50 |
| 3-Point Hitch Type | CAT-I |
| Frame Off-set (mm / inch) | 102.5 / 4 |
| No. of Tines (C-60×7) | 54 |
| PTO Input Speed (RPM) | 540 |
| Rotor Shaft Speed (RPM@540) | 238 |
| Standard Tine Construction | Curved / Square |
| Transmission Type | Gear |
| Max. Working Depth (mm / inch) | 200 / 8 |
| Rotor Tube Diameter (mm / inch) | 89 / 3.5 |
| Rotor Swing Diameter (mm / inch) | 446 / 17.50 |
| Weight (Kg / lbs) | 325 / 717 |
